FASTENING COMPONENTS FOR ENGINEERS

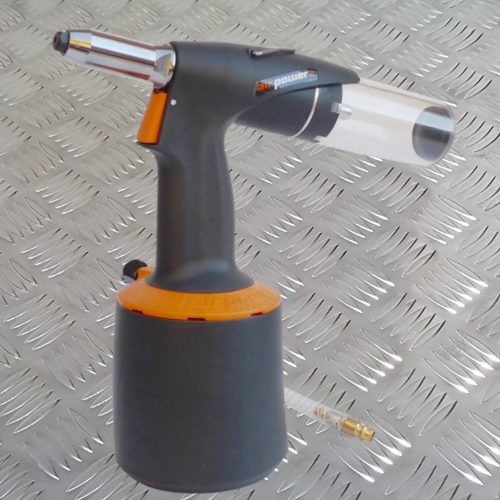

AP2 6.4 Capacity Production Air Riveter

Product Details

The Airpower AP2 pneumatic (air) riveter is a very ergonomically designed production tool with high performance – weight ratio and vacuum assist to maximise productivity. The vacuum suction assists rivet insertion, holds the rivet securely in the nose tip, then quickly moves the spent mandrel into the collector. This feature can be simply turned on or off by rotating the mandrel collector.

Model AP2 is designed for fast installation of blind rivets up to 6.4mm diameter. Operator comfort is enhanced by the strong composite body that reduces the weight of the tool and the clever air inlet swivel fitting which can be positioned to the front, back, left or right of the body as preferred.

Specification

Capacity (diameter) 4.0mm – 6.4mm rivets

Weight: 1.65 KG

Tool Stroke: 21mm

Traction Power: 12.5kN



Diameter
Order CodeOrder MultipleQty
4.0-6.4XAP21
