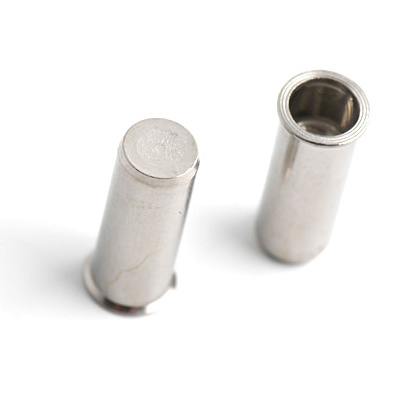

Type TFE-A2-CE Reduced Csk Head Closed End Rivet Nuts, Round Plain Body A2 Stainless
Product Details
These 'reduced countersunk' or 'low profile' head rivet nuts offer near flush installation in predrilled or punched holes without any extra hole preparation. The closed end design prevents ingress of moisture or contamination and also prevents too long a screw being inserted into the component. Rivet nuts are installed from one side only using a pneumatic, cordless or hand rivet nut tool.
Type TFE-A2-CE features
- Low Profile Head
- Round Plain Body
- Closed End
- A2 / 304 Stainless Steel
Specification
| Thread Size | Grip Range | Gripmor Part No | Hole Diameter | Body Diameter | Head Diameter | Head Thickness | Overall Length |
| M3 | 0.5-2.0 | TFE3-A2-CE | 5.1 | 5 | 6 | 0.5 | 13 |
| M4 | 0.5-2.5 | TFE4-A2-CE | 6.1 | 6 | 7 | 0.5 | 16 |
| M5 | 0.5-3.0 | TFE5-A2-CE | 7.1 | 7 | 8 | 0.5 | 18 |
| M6 | 0.5-3.0 | TFE6-A2-CE | 9.1 | 9 | 10 | 0.5 | 21 |
| M8 | 0.5-3.0 | TFE8-A2-CE | 11.1 | 11 | 12 | 0.5 | 23.5 |
| M10 | 1.0-3.5 | TFE10-A2-CE | 13.1 | 13 | 14.2 | 0.8 | 26.5 |
Dimensions in mm
