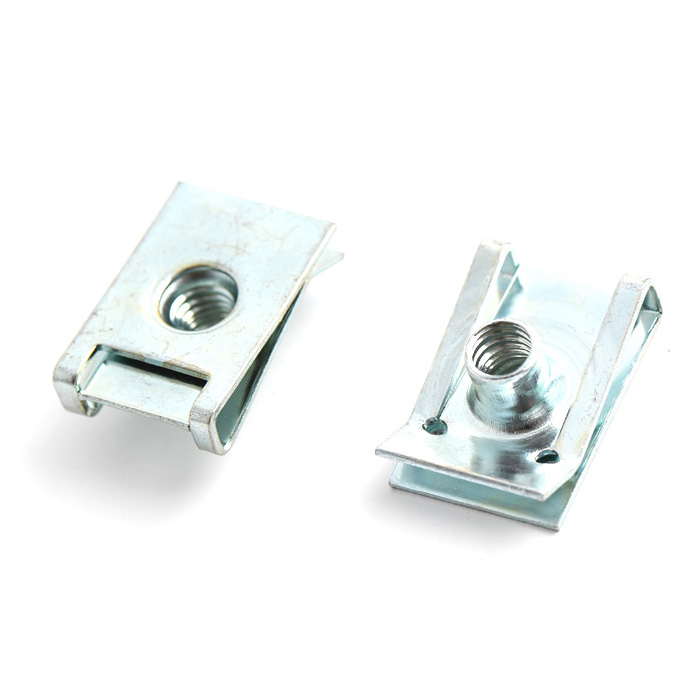

Lug Nuts - Euro Series, Zinc Plated
Product Details
Lug nuts are perfect for applications where pressed U-Nuts are not strong enough. They provide a one-piece multi-thread captive fastener with a degree of adjustment to assist screw alignment and product assembly
Standard Finish: Zinc Clear Cr3 plating
Specification
| Thread Size | Overall Length | Overall Width | Distance from screw centre to panel edge |
| M4 | 15 | 10 | 7.3 |
| M5 | 20 | 14 | 11 |
| M5 | 15 | 12 | 7.3 |
| M6 | 22.2 | 15 | 12 |
| M6 | 18.8 | 16 | 8.4 |
| M8 | 24.3 | 17 | 13 |
Dimensions in mm
