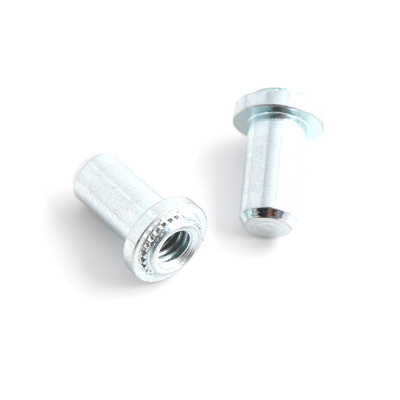

Steel Zinc (C - B) Blind Clinch Nuts

Product Details

These hardened steel zinc plated blind clinch nuts have an extended closed end section which encloses the screw thread to prevent any ingress of contamination into the product. Suitable for installation into materials of up to 80HRB hardness using a parallel squeezing force. For best performance we recommend using the highest shank code that is suitable for the parent material thickness.

Dimensions in mm.

Specification

Thread Size	Hole Diameter	Max Body Diameter	Body Height	Min. Distance Centre to Panel Edge
M3	4.25	6.35	9.6	4.8
M4	5.4	7.95	11.2	6.9
M5	6.4	8.75	11.2	7.1
M6	8.75	11.1	14.3	8.6

Dimensions in mm

Thread Size	Shank Code	For Sheet Thickness	Part Ref	Order Code	Order Multiple
M3	1	1.0-1.4	C - B M3-1 ZI	XC0331	100
M3	2	1.4+	C - B M3-2 ZI	XC0332	100
M4	1	1.0-1.4	C - B M4-1 ZI	XC0341	100
M4	2	1.4+	C - B M4-2 ZI	XC0342	100
M5	1	1.0-1.4	C - B M5-1 ZI	XC0351	100
M5	2	1.4+	C - B M5-2 ZI	XC0352	100
M6	1	1.4-2.3	C - B M6-1 ZI	XC0361	100
M6	2	2.3+	C - B M6-2 ZI	XC0362	100
