Locking Type, Steel Zinc (C - LAS) Unified Thread Floating Clinch Nuts
Product Details

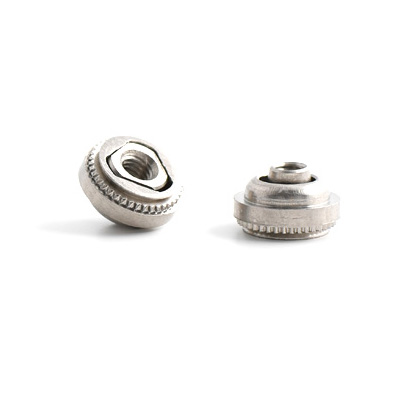

These floating clinch nuts have the same features as regular clinch nuts with the additional benefits of accommodating up to 0.8mm 'off-centre' screw alignment and a self-locking thread to help prevent the assembled screw coming loose with vibration.
This UNIFIED range are made of hardened steel zinc plated and are suitable for installation in material of up to HRB70 hardness. Install using a press with a hollow punch to apply pressure on the outer flat ring of the body only.
Specification
| Thread Size | Hole Diameter | Body Diameter | Body Height | Min distance centre to panel edge |
| #4-40 | 7.37 | 9.1 | 4.8 | 7.6 |
| #6-32 | 8.33 | 9.9 | 5.1 | 8.1 |
| #8-32 | 9.35 | 11.2 | 5.3 | 8.6 |
| #10-32 | 10.31 | 11.9 | 6.9 | 9.1 |
| 1/4-20 | 13.08 | 15.2 | 7.9 | 10.7 |
Dimensions in mm
