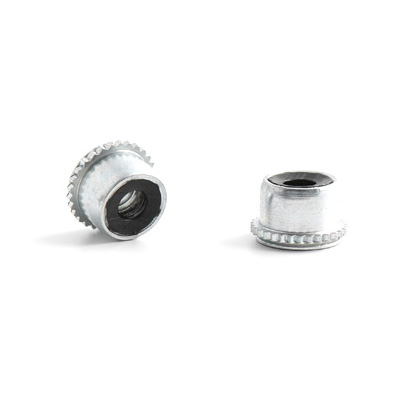

Locking Type, Steel Zinc (C - PL) Clinch Nuts
Product Details
Clinch nylon-insert lock nuts have a reusable nylon thread locking insert which prevents the mating screw thread becoming loose.
The C - PL series are hardened steel zinc plated and are suitable for press installation into material of up to 70HRB hardness.
Specification
| Thread Size | Hole Diameter | Body Diameter | Body height* | Min distance centre to panel edge |
| M3 | 6.0 | 5.5 | 3.6 | 4.3 |
| M4 | 7.5 | 7.0 | 4.2 | 5.6 |
| M5 | 8.0 | 7.5 | 4.5 | 6.4 |
*After installing into 1.5mm sheet
Dimensions in mm
