Captive Screw Clinch Panel Fasteners (C - PF11)

Product Details

Clinch panel fasteners solve the potential problem of having loose screws in removable access panels as the screw remains captive in the fastener body at all times.

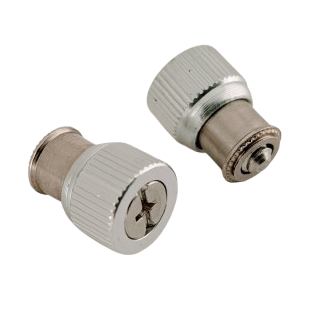

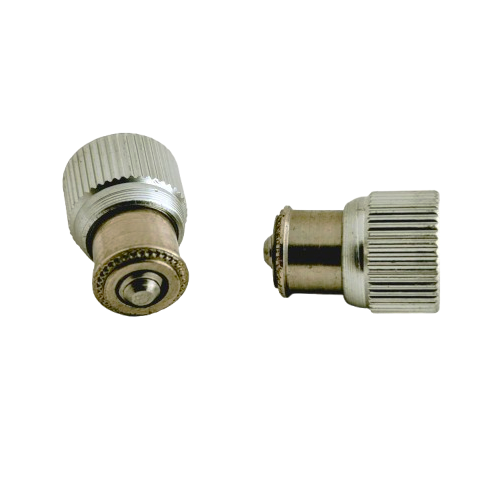

The C-PF11 style panel fasteners have a knurled aluminium 'thumb knob' for convenient hand operation. The panel screw is made of 400 series stainless steel, the fastener body is made of hardened nickel plated steel and is suitable for installation in material of up to 80HRB hardness.

Specification

Thread Size	Hole Size in Sheet	Head Diameter	Min Distance Centre to edge
M3	5.6	10.46	7.1
M4	7.92	12.85	8.4
M5	7.92	12.85	8.4
M6	9.53	14.55	11.7

Dimensions in mm

Thread Size	Shank Code	For Sheet Thickness	Part Ref	Order Code	Order Multiple
M3	0	0.92+	C - PF11 M3-0	XCPF1130	50
M3	1	0.92+	C - PF11 M3-1	XCPF1131	50
M3	2	0.92+	C - PF11 M3-2	XCPF1132	50
M4	0	0.92+	C - PF11 M4-0	XCPF1140	50
M4	1	0.92+	C - PF11 M4-1	XCPF1141	50
M4	2	0.92+	C - PF11 M4-2	XCPF1142	50
M5	0	0.92+	C - PF11 M5-0	XCPF1150	check
M5	1	0.92+	C - PF11 M5-1	XCPF1151	check
M5	2	0.92+	C - PF11 M5-2	XCPF1152	check
M6	0	0.92+	C - PF11 M6-0	XCPF1160	check
M6	1	0.92+	C - PF11 M6-1	XCPF1161	check
M6	2	0.92+	C - PF11 M6-2	XCPF1162	check
