Hard Stainless (C - BSO4) Blind Hole Clinch Standoffs

Product Details

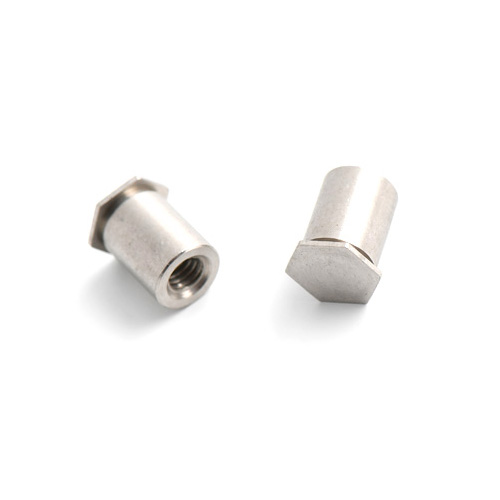

Blind hole clinch standoffs provide a permanent captive threaded spacer in thin metal materials. The C - BSO4 range are made of 400 series extra hard stainless steel and are recommended for use if the parent material is stainless steel, as they can be installed in material of up to 88 HRB hardness. 400 series Martensitic stainless has a higher carbon content and also has magnetic properties.

A range of standard lengths are listed below, if you need a different size then please enquire.

Specification

Thread Size	Body Diameter	Min Sheet Thickness	Min. distance centre to panel edge
M3	4.1	1.0	6.8
M3	5.3	1.0	6.8
M4	7.1	1.3	8.0
M5	7.1	1.3	8.0

Dimensions in mm

Thread Size	Length	Hole Size Required	Part Ref	Order Code	Order Multiple
M3	6	4.2	C - BSO4 4.2 M3 X 6	XC614236	100
M3	8	4.2	C - BSO4 4.2 M3 X 8	XC614238	100
M3	10	4.2	C - BSO4 4.2 M3 X 10	XC6142310	100
M3	12	4.2	C - BSO4 4.2 M3 X 12	XC6142312	100
M3	14	4.2	C - BSO4 4.2 M3 X 14	XC6142314	100
M3	16	4.2	C - BSO4 4.2 M3 X 16	XC6142316	100
M3	18	4.2	C - BSO4 4.2 M3 X 18	XC6142318	check
M3	20	4.2	C - BSO4 4.2 M3 X 20	XC6142320	check
M3	25	4.2	C - BSO4 4.2 M3 X 25	XC6142325	check
M3	6	5.4	C - BSO4 5.4 M3 X 6	XC615436	100
M3	8	5.4	C - BSO4 5.4 M3 X 8	XC615438	100
M3	10	5.4	C - BSO4 5.4 M3 X 10	XC6154310	100
M3	12	5.4	C - BSO4 5.4 M3 X 12	XC6154312	100
M3	14	5.4	C - BSO4 5.4 M3 X 14	XC6154314	100
M3	16	5.4	C - BSO4 5.4 M3 X 16	XC6154316	100
M3	18	5.4	C - BSO4 5.4 M3 X 18	XC6154318	check
M3	20	5.4	C - BSO4 5.4 M3 X 20	XC6154320	check
M3	22	5.4	C - BSO4 5.4 M3 X 22	XC6154322	check
M3	25	5.4	C - BSO4 5.4 M3 X 25	XC6154325	check
M4	6	7.2	C - BSO4 M4 X 6	XC6146	100
M4	8	7.2	C - BSO4 M4 X 8	XC6148	100
M4	10	7.2	C - BSO4 M4 X 10	XC61410	100
M4	12	7.2	C - BSO4 M4 X 12	XC61412	100
M4	14	7.2	C - BSO4 M4 X 14	XC61414	100
M4	16	7.2	C - BSO4 M4 X 16	XC61416	100
M4	18	7.2	C - BSO4 M4 X 18	XC61418	100
M4	20	7.2	C - BSO4 M4 X 20	XC61420	100
M4	25	7.2	C - BSO4 M4 X 25	XC61425	100
M5	12	7.2	C - BSO4 M5 X 12	XC61512	check
M5	other	7.2	C - BSO4 M5 OTHER	XC615X	check
