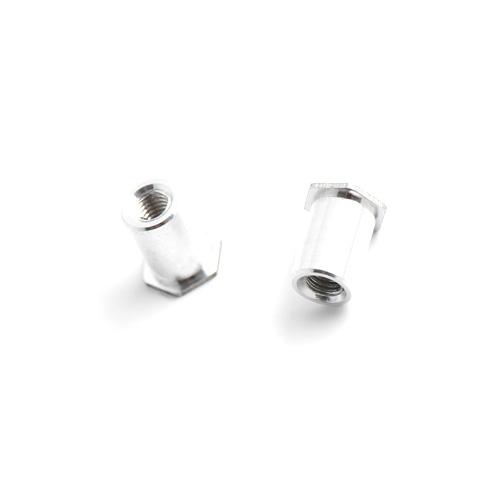

Aluminium (C - BSOA) Blind Hole Clinch Standoffs

Product Details

Blind hole clinch standoffs provide a permanent captive threaded spacer in thin metal materials. On installation using a press, the thin hexagon head becomes embedded in the parent material leaving it flush on the reverse side. The C - BSOA range are made of aluminium alloy and can be installed in material of up to 50 HRB hardness.

Some standard lengths are listed below, if you need a size not shown then please enquire.

Specification

Thread Size	Body Diameter	Min Sheet Thickness	Min. distance centre to panel edge
M3	4.1	1.0	6.8
M3	5.3	1.0	6.8
M4	7.1	1.3	8.0

Dimensions in mm

Enquire Online

Thread Size	Length	Hole Size Required	Part Ref	Order Code	Order Multiple
M3	6	4.2	C - BSOA 4.2 M3 X 6	XC624236	check
M3	8	4.2	C - BSOA 4.2 M3 X 8	XC624238	check
M3	10	4.2	C - BSOA 4.2 M3 X 10	XC6242310	check
M3	12	4.2	C - BSOA 4.2 M3 X 12	XC6242312	check
M3	14	4.2	C - BSOA 4.2 M3 X 14	XC6242314	check
M3	16	4.2	C - BSOA 4.2 M3 X 16	XC6242316	check
M3	6	5.4	C - BSOA 5.4 M3 X 6	XC625436	check
M3	8	5.4	C - BSOA 5.4 M3 X 8	XC625438	check
M3	10	5.4	C - BSOA 5.4 M3 X 10	XC6254310	check
M3	12	5.4	C - BSOA 5.4 M3 X 12	XC6254312	check
M3	14	5.4	C - BSOA 5.4 M3 X 14	XC6254314	check
M3	16	5.4	C - BSOA 5.4 M3 X 16	XC6254316	check
M4	8	7.2	C - BSOA M4 X 8	XC6248	check
M4	other	7.2	C - BSOA M4 OTHER	XC624X	check
