Hex Weld Nuts, Steel
Product Details

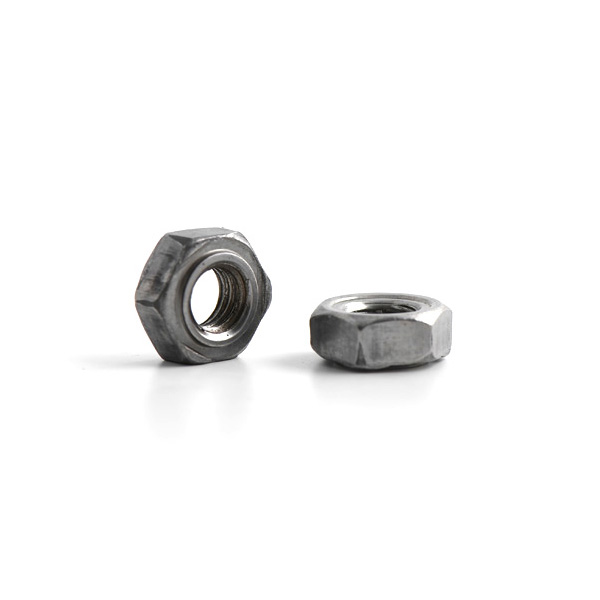

Hexagon pattern weld nuts to DIN929 specification, these weld nuts have a collar to assist precise location of the nut in the material before welding.
These nuts are mild steel plain finish.
Specification
| Thread Size | Hole Diameter | Nut AF | Nut Thickness |
| M4 | 6.0 | 9 | 3.5 |
| M5 | 7.0 | 10 | 4 |
| M6 | 8.0 | 11 | 5 |
| M8 | 10.5 | 14 | 6.5 |
| M10 | 12.5 | 17 | 8 |
| M12 | 14.8 | 19 | 10 |
| M16 | 18.8 | 24 | 13 |
Dimensions in mm
